INSTRUCTION FOR CHINA SOLAR STREET LIGHT

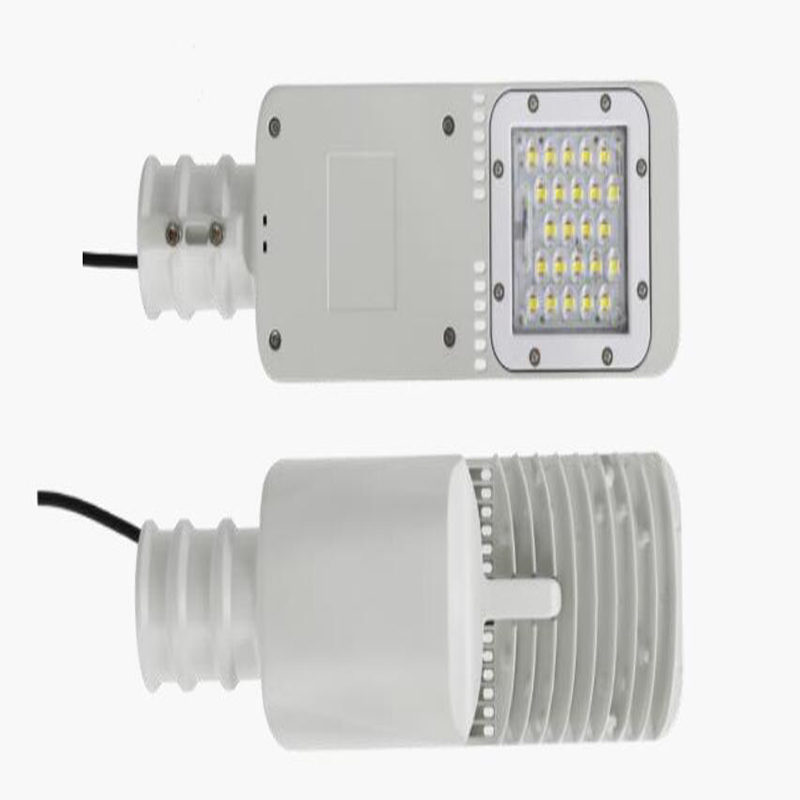

PRODUCT DETAILS OF ALL IN TWO SOLAR STREET LIGHT
DISTRIBUTIONS CURVES OF ALL IN ONE SOLAR STREETLIGHT
SPECIFCATION FOR CHINA FOR ALL IN ONE SOLAR STREET LIGHT
APPLICATION FOR ALL IN ONE SOLAR STREETLIGHT
Easy Installation With this new design, it is easy installation, it could be installed by untrained workers within 5 minutes It is an enviromentally creative product of energy saving integrated solar street lights. Better performance Compared to the solar lights with lead acid battery luminaries, this one is long lasting and work for longer time. It uses 5050 light source with high lumen output, and glue filling techniquefor lens. The luminous efficiency is up to 140lm/W which is increased by more than 30% compared with existing module. Good heat radiation aluminum is used for external protection battery box; protection grade is IP67, guarantees working life over 8 years. High quality spraying is adopted on surface treatment, which is better on adhesive force, corrosion resistance and aging resistant than painting, which can make the products stable at least for more than 10 years. Built-in grade A powerful lithium ion battery, the battery cell is strictly sorted. Deviation between cells is lower than 4mΩ+5mV. Strict grouping promises consistency of internal resistance, and high efficiency of charging and discharging rate which is almost 99%. Good Warranty Terms If our producst have met a problem, and we will provide product or spare parts replacement based on the warranty Terms. Product are amaged during transportation, or malfunction caused by incorrect operation method of customer. Operation violate to the setting condition, method of application and notes recorded in instruction Malfunction caused by fire, earthquake, flood, typhoon or other natural disaster. However, circumstances below are not in warranty range:VIDEO OF ALL IN TWO SOLAR STREET LIGHT
| Working Lighting Mode | |
| Work for over 10 hours per night This all in one solar streetlight working mode is based on two contant rainy days You also can send us for customized working plan. |  |
| Working mode can be adjusted according to client's demands. |
| Test Report |  | |||
| Distributions Curves | TYPE II SHORT | TYPE III MEDIUM | ||
 |  | |||
| Simulation of 6M pole 40W Integrated Solar Streetlight |    | |||
| Picture |  | ||||
| Model | SS26 Saturn-30W | SS26 Saturn-50W | SS26 Saturn-60W | ||
| Led Chips | Phillips 5050 | Phillips 5050 | Phillips 5050 | ||
| Wattage | 30W | 50W | 60W | ||
| Lumen Output | 4200LM | 7000LM | 8400LM | ||
| Control | SRNE controller | SRNE controller | SRNE controller | ||
| Solar Panel | 60W | 100W | 120W | ||
| Battery Capacity | 12V,20AH | 12V,60AH | 12V,72AH | ||
| Battery Lifetime | Lifepo4, 3000cycles | Lifepo4, 3000cycles | Lifepo4, 3000cycles | ||
| Installing Height | 6M | 6M | 7-8M | ||
| MOQ | 10pcs | 10pcs | 10pcs | ||
DESCRIPTION OF CHINA SOLAR STREET LIGHT
Features ♦IP66 rated, appicable for all kinds for outdoor use. ♦High quality die-casting aluminum lamp body, light weight, good heat dissipation performance ♦The solar streetlight is using LifePo4 Battery with over 3000cycles. The battery capacity is sustainable for lasting 2 or 3 rainy days ♦Reasonable structure design, elegant apperance ♦This all in one solar streetlight is using monocrystalline silion, with 19.5% high efficiency solar panel, which can ensure the charging efficiency.[video width="800" height="654" mp4="https://d479.goodao.net/uploads/video.mp4"][/video]Focus On Solar Lighting Solution For More Than 10 Years.
PRODUCTION PROCESS
ORDER PROCESS
FAQ
1. Is sample availabe for test? Yes, we are accepting the sample orders for your testing. 2. What is the MOQ ? Low MOQ, sample 1pc and first trial order 8pcs. 3. What is the delivery time? The delivery time is 20-25 days after getting the deposit payment. 4. Do you provide OEM service? Yes, Amber believes the fastest and the most efficient way is to cooperate with all greatest customers based OEM business. OEM are welcomed. 5. What if i want to print my own color box? The MOQ of the colored box is 1000pcs, so if your order qty is less than 1000pcs, we will charge a extra cost 350usd to make color boxes with your brand. But if in the future, your total ordering qty has reached 1000pcs, we will refund 350usd to you.
